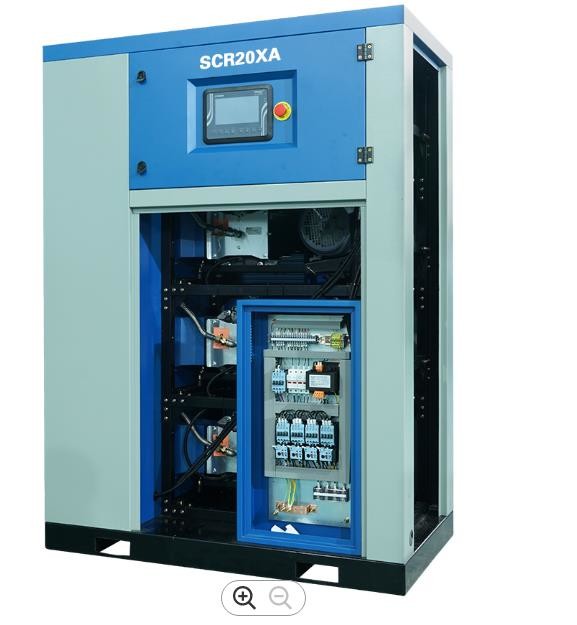

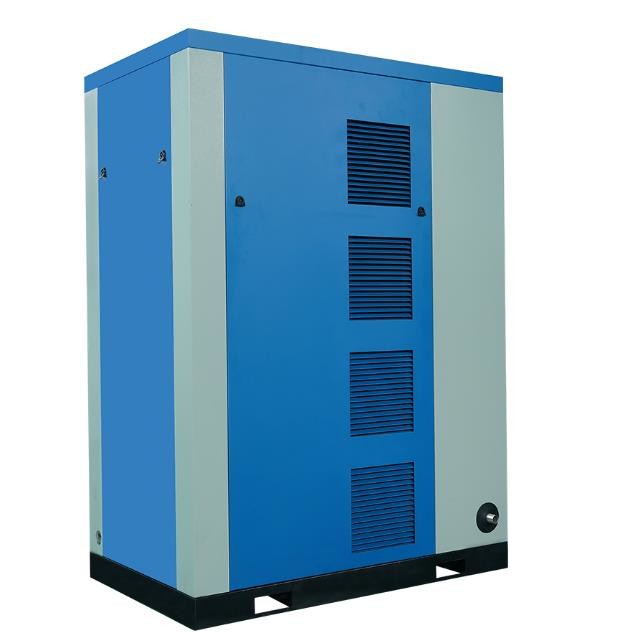

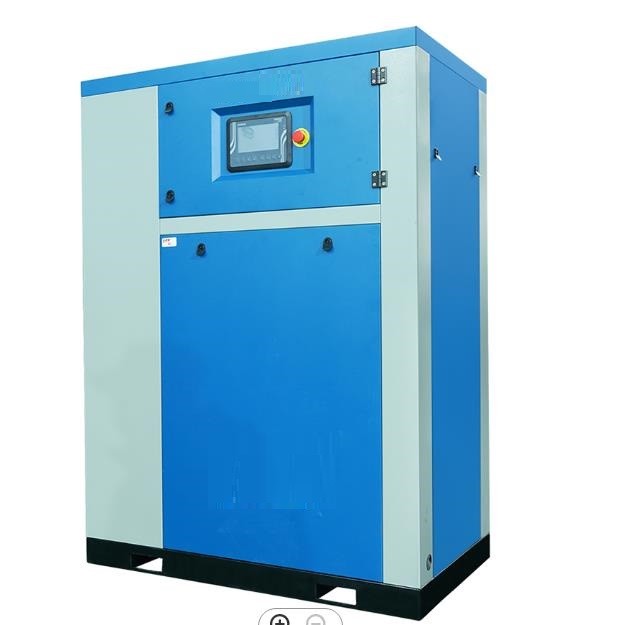

15KW Small Rotary Screw Air Compressor 440V 1.6m3 Min 650KGS

สถานที่กำเนิด ประเทศจีน
ชื่อแบรนด์ OEM
ได้รับการรับรอง CE
หมายเลขรุ่น CHIC-20A
จำนวนสั่งซื้อขั้นต่ำ 1
รายละเอียดการบรรจุ ขนาดบรรจุ (L × W × H): 800mm × 1200mm × 1800mm
เวลาการส่งมอบ 7 วัน
สามารถในการผลิต / วัน 500PCS

ติดต่อฉันสำหรับตัวอย่างฟรีและคูปอง

whatsapp:0086 18588475571

วีแชท: 0086 18588475571

Skype: sales10@aixton.com

หากคุณมีข้อกังวลใด ๆ เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
ชื่อ สายพาน 20HP 15KW 8Bar ขับเคลื่อนใช้เครื่องอัดอากาศแบบสกรูแบบไม่มีน้ำมันแบบหมุน จัดส่งทางอากาศ 1.6m³ / นาที
ไฟฟ้า สามเฟส 380/60 หรือ 440/60 (V // Hz) ความดัน 8bar
ระดับเสียง 68DB อำนาจ 20HP / 15KW
N. น้ำหนัก 650Kgs สี สีน้ำเงิน
เน้น

15KW small rotary screw air compressor

,

440V small rotary screw air compressor

,

440V rotary type compressor

ฝากข้อความ
รายละเอียดสินค้า

   we use a hydraulic load conversion system instead of a pneumatic system to avoid periodic replacement of pneumatic components and reduces unnecessary downtime Independent inlet silencer box.

Ensure the air filter inlet temperature equal to the ambient temperature.and maintenance costs.

Independent inlet silencer box. Ensure the air filter inlet temperature equal to the ambient temperature.









Technical parameters15KW Small Rotary Screw Air Compressor 440V 1.6m3 Min 650KGS 0



Model CHIC-20A
Power 20HP/15KW
FAD: (M3/MIN) 1.6
Pressure 8 bar
Cooling Air-cooling
Noise level 68dB
Drive method Belt drive type
Discharge temperature Environment temp+15℃
Electricity Three phase 380/60 or 440/60 (V//Hz)
Air outlet: Pipe diameter(inch) R1
delivery 15-20 days
Dimension 800MM*1200MM*1800MM
Net weight 650KGS


Packaging & Shipping


Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo



15KW Small Rotary Screw Air Compressor 440V 1.6m3 Min 650KGS 1

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.

Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager

Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
